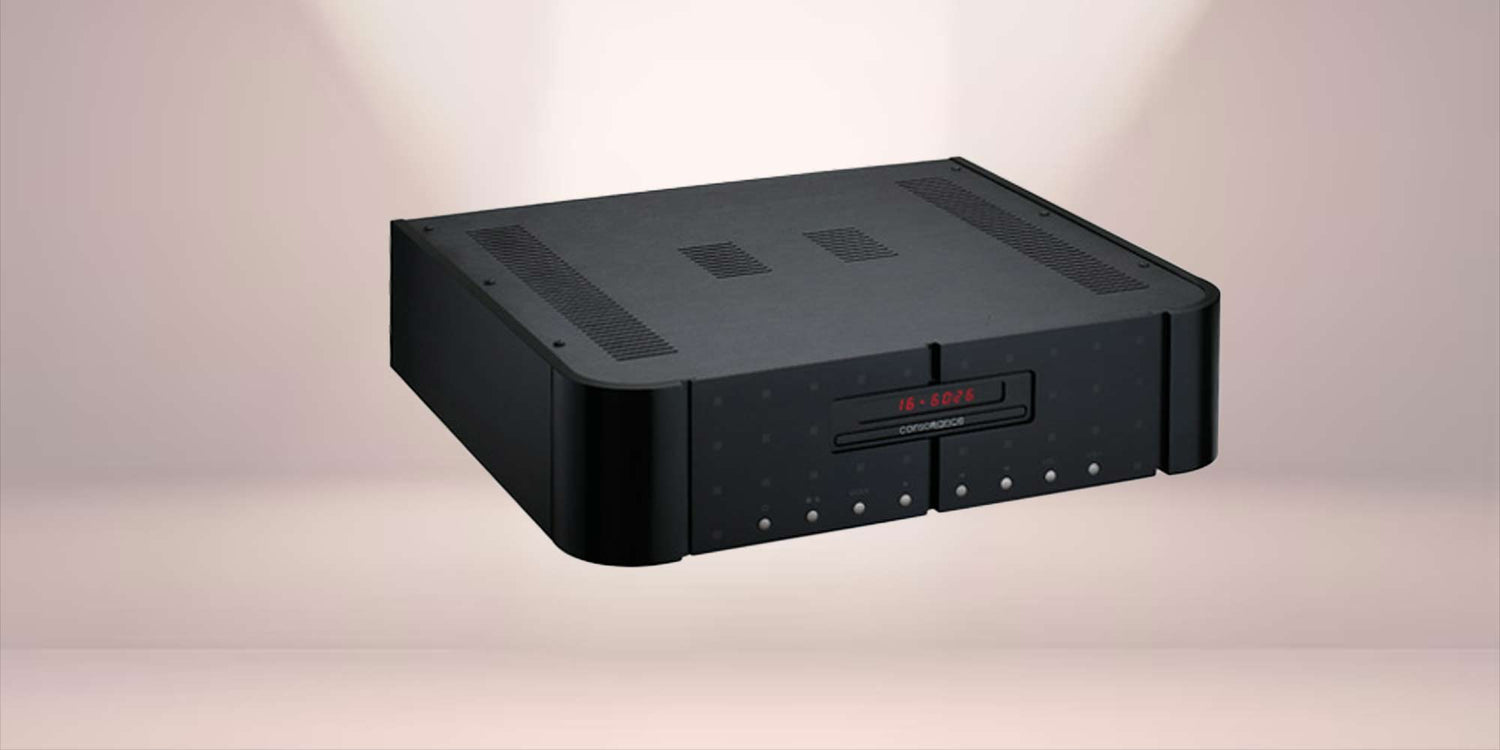

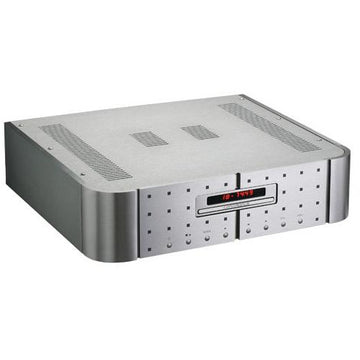

Opera-Consonance Ping 100W Integrated Amplifier with Tuner, USB DAC and CD Player

$1,650.00 $3,250.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

Product Description

Cool Class A design,100watt solid-state amplifier, Ping is designed to introduce real Hi-Fi performance in a 4-in-1 system. With all Hi-Fi grade components applied, it consists of a CD-player, a FM/AM tuner and a 100w Cool Class A solid-state stereo amplifier, and USB DAC.

"Superb build; simple to use; powerful sound with amazing bass and presence"
What HiFi Magazine, UK - Full review here

"This is a remarkable one-box solution for the music enthusiast willing to take the leap of faith that moves them from the "comfort zone" of familiar brands."
Gramophone Magazine, UK


- Linear technology applied in DAC stage
- 100 watt per channel power delivery
- Cool Class A technology applied in amplifier stage
- High-quality FM/AM tuner stage
- All functions can be controlled via remote

Linear technology (applied to DAC stage):

-Non-oversampling, no digital filter
-J-FET/Transisters filter, no op-amp
-Passive I/V conversion In progression
-Short pass length, minimal number of parts

Cool Class A technology (applied to Amplifier):

Combines the advantage of class AB and the class A technology, the Cool Class A technology actually achieves the same linear sound performance but without the normal need of a big electrical current, as in Class A.

SpAct memory architecture (applied to USB interface):

Its unique system recovers the audio clock from the USB.
Analog pulls with SpAct enable playback with very low clock jitter.



  • Circuit Type: 100w Cool Class-A amplifier
  • CH Sources : one remote controllable inputs switched by gold plated relays
  • Frequency response : Less than +/- 0.1 dB deviation 20Hz-80kHz
  • Phase response : Less than 2 degrees deviation 20Hz-80kHz
  • Signal-to-noise ratio : More than 95dB
  • Crosstalk : Less than -100dB
  • Distortion : Less than 0.015% at 80W 8 0hms
  • Remote Control : RC-5 compatible IR system 36kHz modulation
  • Dimensions / Weight : 11cm x 45cm x 33cm (HxWxD) / 20kg
  • CD section :
  • DAC resolution : 16bit TDA1543
  • Frequency response : Less than +/- 0.5 dB deviation 20Hz-20kHz
  • Phase response : Less than 5 degrees deviation 20Hz-20kHz
  • Signal-to-noise ratio : More than 100dB
  • Crosstalk : Less than -100dB
  • Distortion (RCA) : Less than 0.12 %
  • Tuner section:
  • FM : Tuning range: VHF/FM 87.5-108MHz
  • Sensitivity: (INF)10dB uV/m
  • Signal/Noise Ratio: 55dB AM :
  • Tuning range: VHF/
  • AM: 522 - 1620 kHz
  • Sensitivity: (INF)60dB uV/m
  • Signal/Noise Ratio: 45 dB
  • USB section:
  • Fully compliant with USB1.1 specification
  • THD+N:0. 006%(at self-powered)
  • Dynamic range: 98 dB

Specifications

Product Description

Cool Class A design,100watt solid-state amplifier, Ping is designed to introduce real Hi-Fi performance in a 4-in-1 system. With all Hi-Fi grade components applied, it consists of a CD-player, a FM/AM tuner and a 100w Cool Class A solid-state stereo amplifier, and USB DAC.

"Superb build; simple to use; powerful sound with amazing bass and presence"
What HiFi Magazine, UK - Full review here

"This is a remarkable one-box solution for the music enthusiast willing to take the leap of faith that moves them from the "comfort zone" of familiar brands."
Gramophone Magazine, UK


- Linear technology applied in DAC stage
- 100 watt per channel power delivery
- Cool Class A technology applied in amplifier stage
- High-quality FM/AM tuner stage
- All functions can be controlled via remote

Linear technology (applied to DAC stage):

-Non-oversampling, no digital filter
-J-FET/Transisters filter, no op-amp
-Passive I/V conversion In progression
-Short pass length, minimal number of parts

Cool Class A technology (applied to Amplifier):

Combines the advantage of class AB and the class A technology, the Cool Class A technology actually achieves the same linear sound performance but without the normal need of a big electrical current, as in Class A.

SpAct memory architecture (applied to USB interface):

Its unique system recovers the audio clock from the USB.
Analog pulls with SpAct enable playback with very low clock jitter.



  • Circuit Type: 100w Cool Class-A amplifier
  • CH Sources : one remote controllable inputs switched by gold plated relays
  • Frequency response : Less than +/- 0.1 dB deviation 20Hz-80kHz
  • Phase response : Less than 2 degrees deviation 20Hz-80kHz
  • Signal-to-noise ratio : More than 95dB
  • Crosstalk : Less than -100dB
  • Distortion : Less than 0.015% at 80W 8 0hms
  • Remote Control : RC-5 compatible IR system 36kHz modulation
  • Dimensions / Weight : 11cm x 45cm x 33cm (HxWxD) / 20kg
  • CD section :
  • DAC resolution : 16bit TDA1543
  • Frequency response : Less than +/- 0.5 dB deviation 20Hz-20kHz
  • Phase response : Less than 5 degrees deviation 20Hz-20kHz
  • Signal-to-noise ratio : More than 100dB
  • Crosstalk : Less than -100dB
  • Distortion (RCA) : Less than 0.12 %
  • Tuner section:
  • FM : Tuning range: VHF/FM 87.5-108MHz
  • Sensitivity: (INF)10dB uV/m
  • Signal/Noise Ratio: 55dB AM :
  • Tuning range: VHF/
  • AM: 522 - 1620 kHz
  • Sensitivity: (INF)60dB uV/m
  • Signal/Noise Ratio: 45 dB
  • USB section:
  • Fully compliant with USB1.1 specification
  • THD+N:0. 006%(at self-powered)
  • Dynamic range: 98 dB
