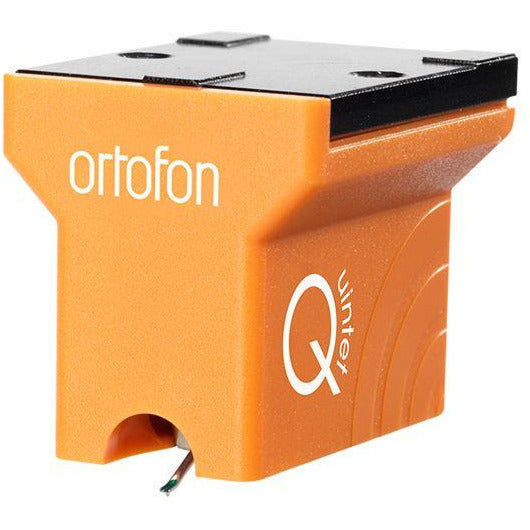

Moving Coil Cartridge
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that has made them the global leader in the manufacture and supply of phono cartridges.
The slim profile of the Quintet Bronze Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.
Additionally its larger footprint ensures reduced distortion and record wear.
The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
- Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
- Channel balance at 1 kHz - < 1.2 dB
- Channel separation at 1 kHz - > 23 dB
- Channel separation at 15 kHz - > 15 dB
- Frequency range at - 3dB - 20-25.000 Hz
- Frequency response 20-20.000 Hz - +/-1.5 dB
- Tracking ability at 315Hz at recommended tracking force *) - 80 µm
- Compliance, dynamic, lateral - 15 µm/mN
- Stylus type - Nude Fine Line
- Stylus tip radius - r/R 8/40 µm
- Tracking force range - 2.1-2.5 g (21-25 mN)
- Tracking force, recommended - 2.3 g (23 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 5 Ohm
- Recommended load impedance - > 20 Ohm
- Cartridge body material - ABS/Aluminium
- Coil wire material - Pure 4-nines copper
- Cartridge colour - Bronze
- Cartridge weight - 9 gram
