Ortofon 2M Red Replacement Stylus

Details

Specifications

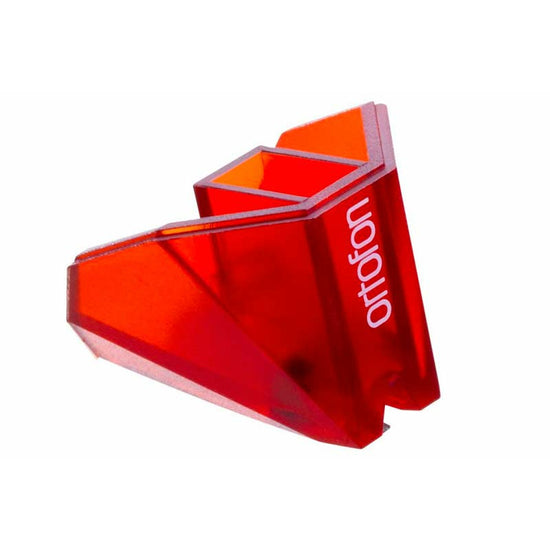

2M Red replacement stylus

Replacement stylus for Ortofon 2M Red cartridge featuring an elliptical diamond tip. Interchangeable with Ortofon 2M Blue.

Recommended tracking force is 1.8g


    Ortofon-Red-2M-stylus-wide

    • Frequency response - 20-20.000 Hz + 3 / - 1 dB
    • Tracking ability at 315Hz at recommended tracking force - 70 µm
    • Compliance, dynamic, lateral - 20 µm/mN
    • Stylus type - Elliptical
    • Stylus tip radius - r/R 8/18 µm
    • Equivalent stylus tip mass - 0.5 mg
    • Tracking force range - 1.6-2.0 g (16-20 mN)
    • Tracking force, recommended - 1.8 g (18 mN)
    • Tracking angle - 20°
    • Stylus colour - Red
