Moving Coil Cartridge
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that has made them the global leader in the manufacture and supply of phono cartridges.

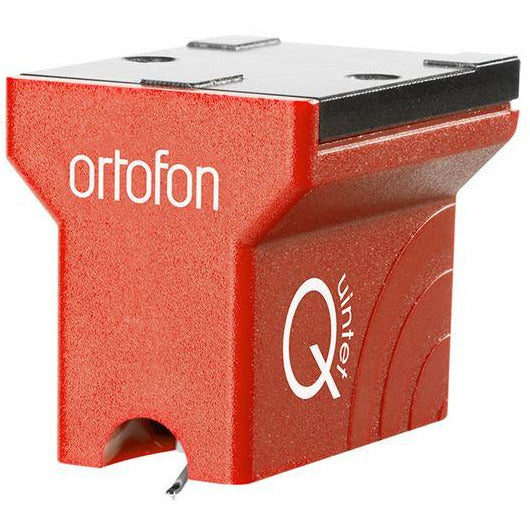

The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
- Output voltage at 1 kHz 5 cm/sec - 0.5 mV
- Channel balance - < 1.5 dB
- Channel separation at 1 kHz - > 21 dB
- Channel separation at 15 kHz - > 14 dB
- Frequency range at -3 dB - 20 - 25.000Hz
- Frequency response 20-20.000 Hz - +/-2.5 dB
- Tracking ability at 315 Hz at recommended tracking force *) - 65 μm
- Compliance, dynamic, lateral - 15 μm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 μm
- Tracking force range - 2.1-2.5 g (21-25 mN)
- Tracking force recommended - 2.3 g (23 mN)
- Tracking angle - 20º
- Internal impedance, DC resistance - 7 Ohm
- Recommended load impedance - >20 Ohm
- Cartridge body material - ABS/Aluminium
- Coil wire material - Copper
- Cartridge colour - Red
- Cartridge weight - 9 g
