Sonance Visual Performance Series Large Round and Square Ceiling/Wall speakers

In Stock, Available Now


Details

Specifications

Visual Performance Series

From the company that invented the category, comes the best sounding, best looking and most complete range of in-wall and in-ceiling speakers ever. The Visual Performance® Series comes in various shapes and sizes to compliment down lights and décor with speaker grills able to be painted for a perfect match. This is a complete range that allows you to enjoy a consistent aesthetic for any application in any room.

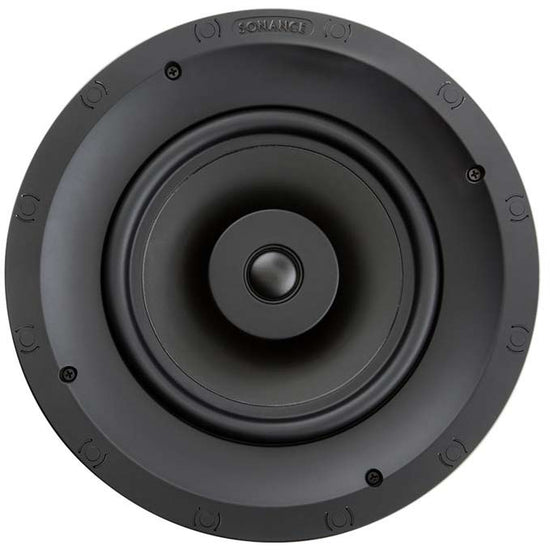

Sonance-VPS-large

3-way speaker system for audiophile quality

  • Perfect for high ceiling installations or anyone wanting high volume levels.
  • Coaxial midrange and tweeter provide superior clarity and detail.
  • Independently pivoting woofer and coaxial midrange/tweeter.
  • 8" woofer delivers exceptional bass response, typical of large cabinet speakers.
  • Tweeter level switch on VP88R allows high frequencies to be adjusted to suite the install environment.
  • Four performance levels to accommodate any ear or budget.



Sonance-VPS-large-in-ceiling-speaker



VP80R

VP82R

VP86R

VP88R

Tweeter

1" (25mm) cloth dome, Ferrofluid-cooled

1" (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber

1" (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber

1" (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber

Midrange

-
4" (102mm) textured polypropylene cone with a rubber surround, pivoting

4" (102mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
4" (102mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting



Woofer

8" (203mm) polypropylene cone with a rubber surround

8" (203mm) textured polypropylene cone with a rubber surround, pivoting

8" (203mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting

8" (203mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting



Frequency Response

 42Hz - 20kHz ±3dB

38Hz - 20kHz ±3dB

34Hz - 20kHz ±3dB

30Hz - 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
6 ohms nominal; 4 ohms minimum

Power Handling



 5 watts minimum; 125 watts maximum

 5 watts minimum; 125 watts maximum

 5 watts minimum; 150 watts maximum

5 watts minimum; 175 watts maximum
Sensitivity

90dB SPL (2.83V/1 meter)

 90dB SPL (2.83V/1 Meter)

 91dB SPL (2.83V/1 meter)

91dB SPL (2.83V/1 meter)

Shipping Weight

12.5 lbs (5.6kg) pair

20 lbs (9kg) pair

20 lbs (9kg) pair

22 lbs (10kg) pair
Speaker Depth 95mm 153.4mm 153.4mm 153.4mm

Shared specifications

Dimensions (Diameter): 295mm

Grille Material: Perforated Steel
